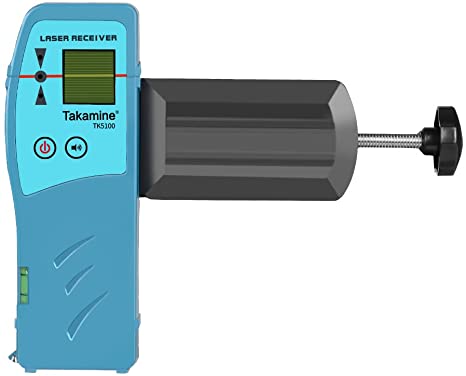

Takamine Laser Receiver for Laser Level - Green Laser and Red Beam Receiver for Pulsing Line Lasers, Three-sided Smart LED Displays, Adjustable Speaker, Two-Sided Level Bubble Bottle, Clamp Included
* ● 【 AVAILABLE FOR RED AND GREEN PULSE LASER】- When used with the Takamine laser receiver, the pulsed mode of the laser level must be turned on. The receiver allows detection of red and green pulsed laser beams in poor lighting conditions at distances up to 200 feet （laser measure 60m）
* ● 【Three-sided Smart LED Displays】-The laser detector has three smart LED displays on the front, side and back of the receiver to provide easier visual readings for multi-angle use.
* ●【Two-Sided Level Bubble Bottle】-The laser level receiver is equipped with a double-sided level bubble bottle on both the front and top for more accurate level determination.
* ● 【Adjustable Speaker】 - The laser receiver has a loud 100 dB speaker designed for listening on noisy construction sites, with three adjustable speaker levels - loud, low and off。
* ● 【 LONG BATTERY LIFE AND CLAMP HOLDER】 - The laser receiver comes with 2 AA batteries, giving you about 20 hours of operation. There is also an auto shut-off feature where the receiver will automatically do so after about 10 minutes. Additional safety beam clamps make it easy to mount the detector to a pole or other target point. We offer a one year warranty, please feel free to contact us with any questions.
Takamine TK5100 Laser Receiver Specifications
-
Pulse duration: 50 μs; pulse width modulation: 5:5
-
Frequency: 10 KHz
-
Display: three-sided LED indicator display
-
Working distance: 200ft/60m
-
Working time: 20 hours; automatic shutdown (no signal detected): 10 minutes
-
Power supply: 1 * 9V dry battery
-
Dimensions (LxWxH): 6.73 x 3.5 x 3.15 inches; Weight: 277g
Easy to use
The Takamine TK5100 laser receiver picks up red and green laser lines at 10KHz and holds them in a horizontal position for a period of time. In addition, the device is user-friendly with its simple, easy-to-use and intelligent design of form and function.
In addition to the normal on/off, the device also has an additional automatic shutdown function, which automatically turns off the power after about 10 minutes without any further operation, extending the use time.

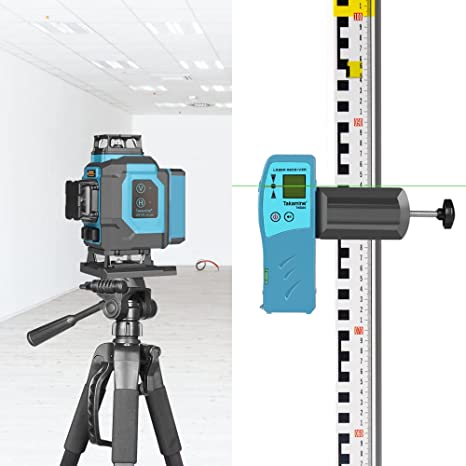

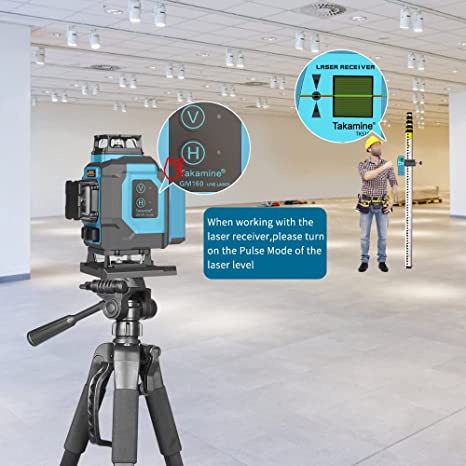

Note: When using with the receiver, you need to turn on the pulse mode of the laser level!!!!!!

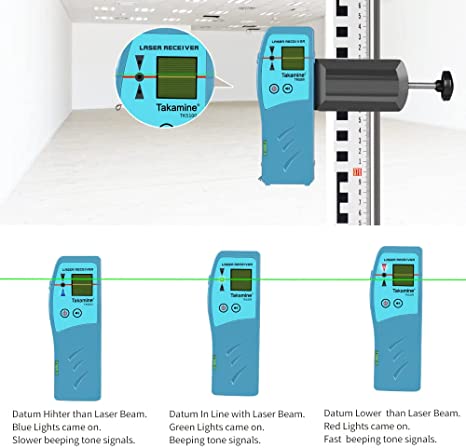

Precise laser signal positioning
As the picture demonstrates.
-
The blue light comes on when the laser beam is above the datum and emits a slowly spaced beep.
-
The red light comes on when the laser beam is below the datum and emits a fast interval beep.
-
The green light comes on when the laser beam coincides with the datum and continues to emit uninterrupted beeps.

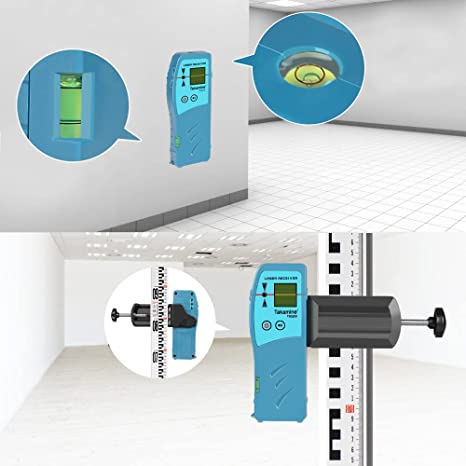

Double-sided built-in bubble bottle
Takamine TK5100 laser detector is equipped with a double-sided level bubble bottle for more accurate determination of the horizontal position.

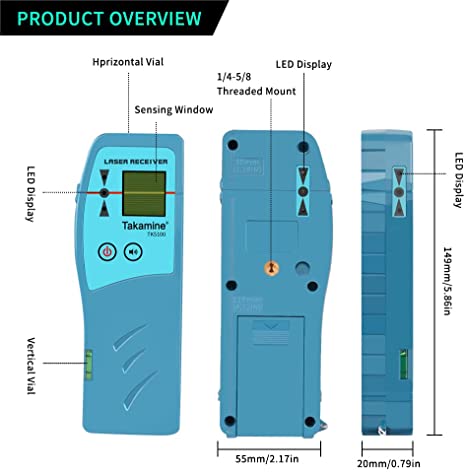

Clear multi-surface readout
Takamine TK5100 has three side LED indicators to meet different angles and different needs.

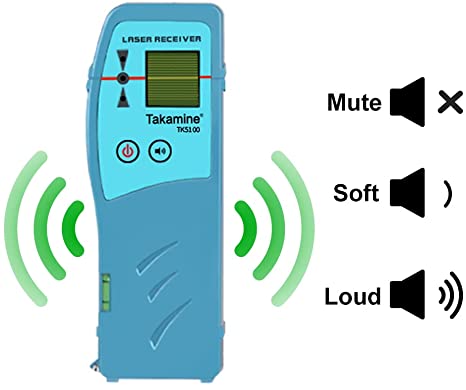

Adjustable speakers
The laser receiver has a loud 100 dB speaker designed for listening on noisy construction sites, with three adjustable speaker levels - loud, low and off.
